NEC Displays 52" MultiSync Large Screen LCD Display (LCD5220-AV)
2000:1 Contrast, 1920 x 1080 Resolution, 178/178 Degrees H/V Viewing Angle, 700cd/m2 BrightnessLearn more about the product
Overview
Technical Specs
Accessories
Rebates
Service Plans
Enhanced Products
Similar Products
User Review

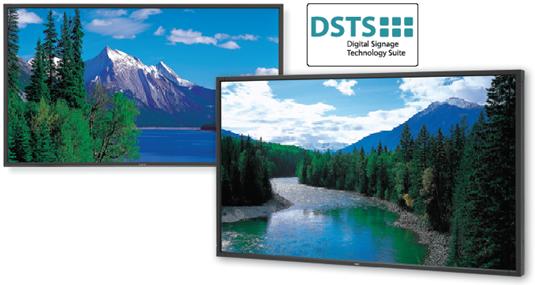

Attract a crowd with the 52” NEC MultiSync LCD5220, a large-screen LCD display ideal for digital signage applications, including transportation and corporate boardrooms. This ultra-thin-frame model boasts the Digital Signage Technology Suite (DSTS), nearly 30 features that enhance display management, improve screen performance and lower total cost of ownership.
Features:
Professional-grade panel leads to less image persistence and a longer display life
Ultra-thin bezel (19mm) helps create near-seamless video wall configurations
Full high-definition display provides optimal resolution (1920 x 1080) for digital signage
U-shaped bulbs allow for more uniform image and even dissipation of heat output
Durable, sealed module prevents contaminants and dust in uncontrolled environments
Optional SpectraViewII color calibration kit ensure color uniformity and fidelity across individual and multiple screens
Built-in expansion slot allows for seamless integration of future third-party components
Optional fully functional XP PRO single board computer processes your digital signage content and eliminates the need for an external PC, cabling, mounting and power supply
2x2 LCD TileMatrix Video Wall Solution, which combines four LCD5220-AV displays with a mounting system, cabling and power suppression, provides an easy-to-configure, cost-effective solution for digital signage, information display and command/control applications
Rest easy with a 3-year limited warranty
Optional speakers and stand available
Automated monitor matching and calibration with NEC SpectraviewII Software
Optional digital tuner allows for high-definition television capabilities (LCD5220-AVT with installed tuner available by special order)
General
Product Type
52" LCD flat panel display
Digital Television Certification
Not certified
TV Tuner
No tuner
Video Interface
Component, composite, HDMI, S-Video
HDMI Ports Qty
1 port(s)
PC Interface
DVI, VGA (HD-15)
HDCP Compatible
Yes
Timer Functions
Sleep
Dimensions
Without stand
Width
47.2 in
Depth
5.8 in
Height
27.4 in
Weight
97.7 lbs
Display
Diagonal Size
52" - widescreen
Technology
TFT active matrix
Resolution
1920 x 1080
Display Format
1080p (FullHD)
Image Aspect Ratio
16:9
Color Depth
24-bit (16.7 million colors)
Image Contrast Ratio
2000:1
Brightness
700 cd/m2
Progressive Scan
Progressive scanning (line doubling)
Widescreen Modes
16:9
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Pixel Pitch
0.6 x 0.6mm
Pixel Response Time
8 ms
Max V-Sync Rate
85 Hz
Max H-Sync Rate
91.1 kHz
Color Temperature Control
Yes
Additional Features
Screen saver, temperature sensor, Digital Signage Technology Suite (DSTS), Rapid Response technology, picture in picture (no tuner), XtraView
Video Features
16:9 Mode
Yes
Analog Video Input Signals
NTSC, PAL, SECAM
Input Video Formats
480p, 720p, 1080i, 1080p, 480i
Supported Computer Resolutions
1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 720 x 400, 1360 x 768, 1920 x 1080
Remote Control
Type
Remote control - infrared
Audio System
Sound Output Mode
Stereo
Speakers Included
Speakers not included
External Speakers Amplifier Power (Total)
30 Watt
Connections
Connector Type
1 x RGB input ( BNC x 5 ) ¦ 1 x RGB output ( BNC x 5 ) ¦ 1 x HDMI ( 19 pin HDMI Type A ) ¦ 1 x DVI-Digital ( 24 pin digital DVI ) ¦ 1 x VGA input ( 15 pin HD D-Sub (HD-15) ) ¦ 1 x component video input ( RCA phono x 3 ) ¦ 1 x composite video output ( BNC ) ¦ 1 x composite video input ( BNC ) ¦ 1 x S-Video input ( 4 pin mini-DIN ) ¦ 1 x composite video input ( RCA phono ) ¦ 2 x audio line-in ( RCA phono x 2 ) ¦ 1 x audio line-in ( mini-phone stereo 3.5 mm ) ¦ 1 x audio line-out ( mini-phone stereo 3.5 mm ) ¦ 1 x speakers output ¦ 2 x serial ( 9 pin D-Sub )
Slot Provided
1 x expansion slot
Stands & Mounts
Flat Panel Mount Interface
200 x 200 mm, 200 x 100 mm
Miscellaneous
Cables Included
1 x VGA cable
Certified for Windows Vista
Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security.
Compliant Standards
FCC Class B certified, CE, CSA, UL, TUV GS, VCCI, C-Tick, cUL, DDC-2Bi, VESA DPMS, CCC, PSB
Power
Power Device
Power supply - internal
Nominal Voltage
AC 120/230 V ( 50/60 Hz )
Power Consumption Stand by / Sleep
5 Watt
Power Consumption Operational
390 Watt
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years
Dimensions & Weight Details
Dimensions & Weight Details
Panel with stand - 47.2 in x 15.7 in x 28.9 in x 102.5 lbs ¦ Panel without stand - 47.2 in x 5.8 in x 27.4 in x 97.7 lbs
